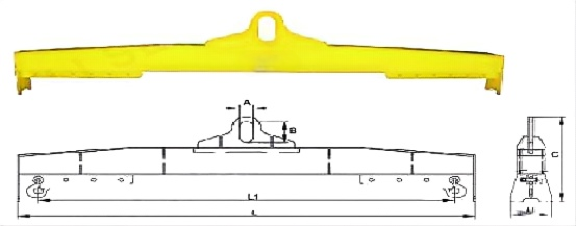

■ Structure:Itype and streamlineform.

■ Accessories:pin,eye hook(swivel hook)

■ Function and characteristic:adjust the position ofthe hookper the dimensions of the loads.

WLL	Adjusting scope	Effective Length	Max.Dimension(mm)					Self weight
(t)	(m)	(m)	A	B	C	L	H	(kg)
2	2～3	3	80	150	570	3184	180	145
3.2	3～5	5	100	220	830	5200	300	400
5	3~5	5	100	220	935	5300	300	520
8	4～ 6	6	160	360	1140	6312	340	980
10	4~6	6	160	360	1140	6312	340	1140
12.5	4～ 6	6	180	400	1320	6320	370	1385
16	6～8	8	180	430	1370	8320	450	2325
20	6～8	8	180	430	1485	8360	450	2635
25	6～8	8	200	500	1755	8500	530	3110
32	8～10	10	220	600	2135	10640	650	5435
40	8~10	10	220	600	2165	10640	650	5880

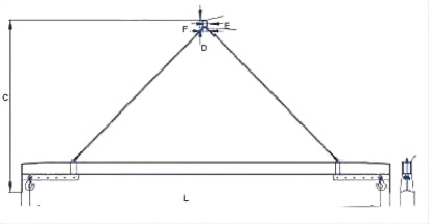

■ Structure:I type and streamline form.

■ Accessories:pin,chain sling,eye hook (swivel hook).

■ Function and characteristic:adjust the position of the hook per the dimensions of the loads.

WLL	Dimension L	Effective Length	Dimensionof the master link(mm)			AxBxC	Self weight
(t)	(m)	(m)	D	E	F	(mm)	(kg)
2	1～3	3	80	20	150	3180×160×1800	150
3.2	3～5	5	90	24	160	5200×210×2100	350
5	3～5	5	100	28	190	5300×240×2400	430
8	6～8	8	110	32	200	8350×250×3800	720
10	6～8	8	120	34	230	8350×280×3850	810
12.5	6～8	8	135	38	250	8350×280×3900	945
16	6～8	8	140	42	270	8350×300×4050	1170
20	6～8	8	160	46	310	8400×300×4150	1475
25	6～8	8	180	52	330	8460×380×4300	1585
32	6～10	10	180	56	330	10500×480×4550	2720
40	6～10	10	220	69	396	10500×480×4650	2790

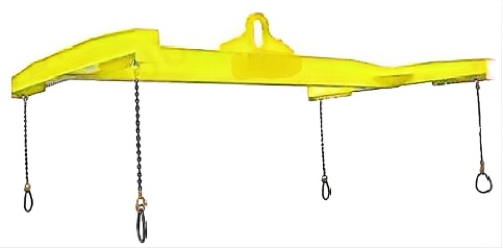

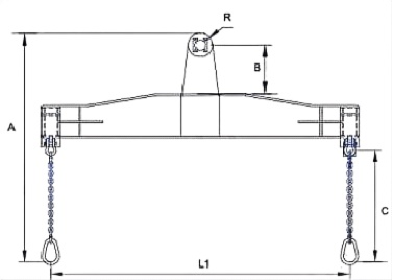

■ Structure:streamline form,line type or I type

■ Accessories:pin,chain sling.

■ Function and characteristic:adjust the position of the hookper the dimensions of the loads.

WLL	L1	L2	A	B	C	R	Dimensions	Self weight
(t)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm )	(kg)
2	3	1～2	1450	220	800	100	3130×2080×1450	280
3.2	3	1～2	1480	220	835	100	3130×2080×1480	288
5	3	1～2	1500	220	835	100	3130×2080×1500	290
8	3	1～2	3500	385	2500	100	3180×2240×3500	1045
10	3	1～2	3600	445	2500	120	3180×2240×3600	1145
12.5	3	1～2	3700	445	2500	120	3180×2240×3700	1195
16	3	1～2	3750	450	2500	120	3180×2240×3750	1295
20	4	1～2	3800	565	2500	125	4200×2240×3800	1875
25	4	1～2	4000	650	2500	155	4200×2240×4000	2155
32	4	1～2	4100	650	2500	155	4220×2240×4100	2325
40	4	1～2	4100	650	2500	155	4250×2240×4100	2740
