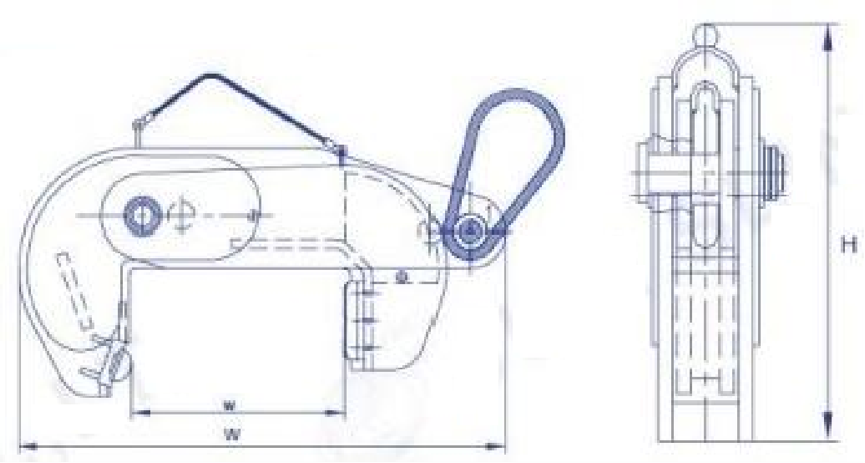

Endless Wire Rope Sling Vertical Steel Coil Lifting Clamp

■ Used for lifting vertical steel coil,open and shut the jaw by replace lifting position.

■ There is a little tilted during the lifting.

WLL Inner Dia.of
the steel coil		 Application
Scope(W)		 Max.Dimension(mm)
t mm mm W H
12.5 φ500 200-400 1300 2600
16 φ500 250-600 1500 2700
32 Φ550 550-750 1900 2600
32 φ760 350-650 1900 2800

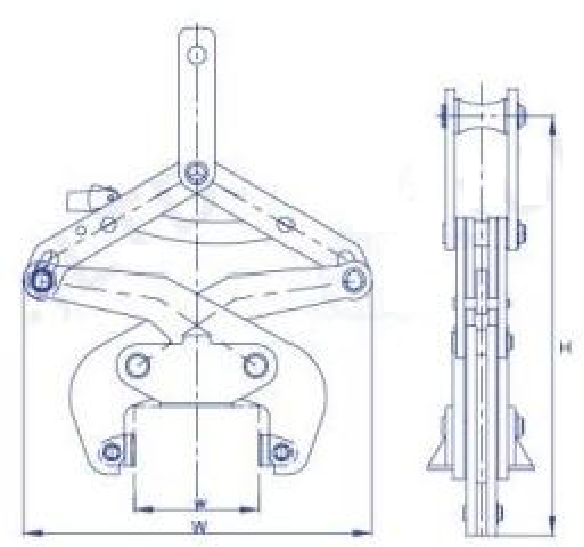

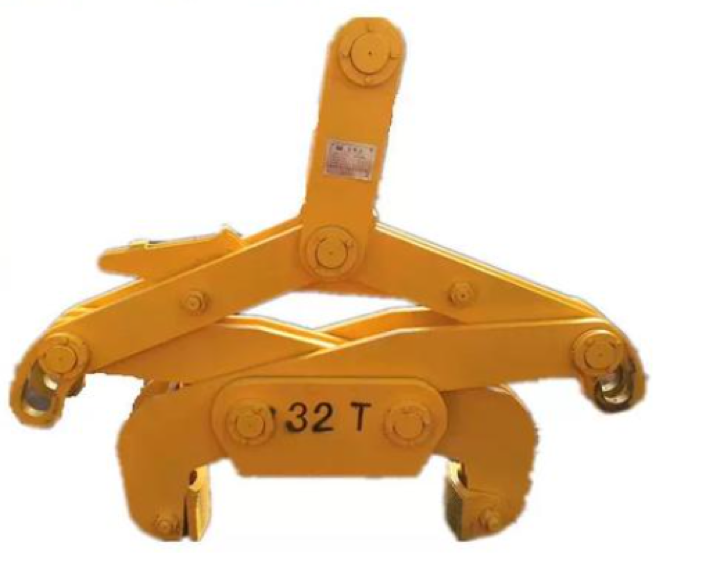

Rod Grab Type Vertical Steel Coil Lifting Clamp

■ Used for lifting vertical steel coil.Lever type working principle makes it with simple structure,flexible movement,safe and reliable during the lifting.

■ Locked by the self weight of the load,open and shut the jaw automatically by the shutter。

■ There is a little tilted during the lifting.

WLL Inner Dia.of
the steel coil		 Application
Scope(W)		 Max.Dimension(mm)
t mm mm W H
6 φ450 400-500 2200 2400
20 φ450 150-450 2200 3100
32 φ450 350-700 2250 3050

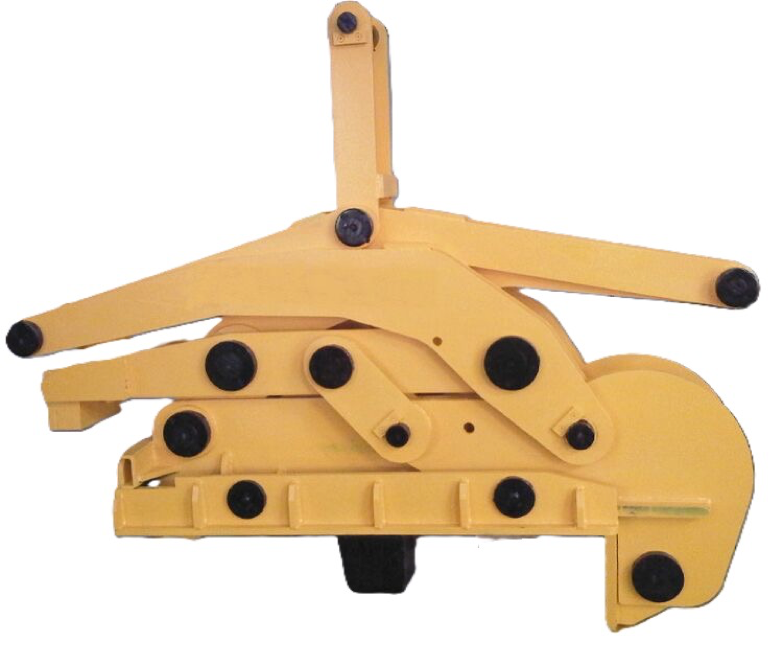

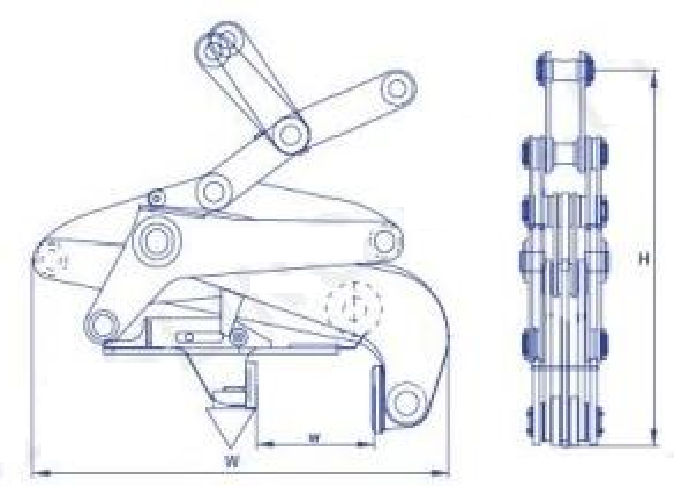

Single-sided Clamp Vertical Steel Coil Clamp

■ Used for lifting vertical steel coil. Lever type working principle makes it with simple structure,flexible movement,safe and reliable during lifting.
■ Locked by self weight of load,open and shut jaw automatically by the shutter.
■ There is a little tilted during lifting.

WLL Inner Dia.of
the steel coil		 Application
Scope(W)		 Max.Dimension(mm)
t mm mm W H
32 φ760 240-800 3200 5700

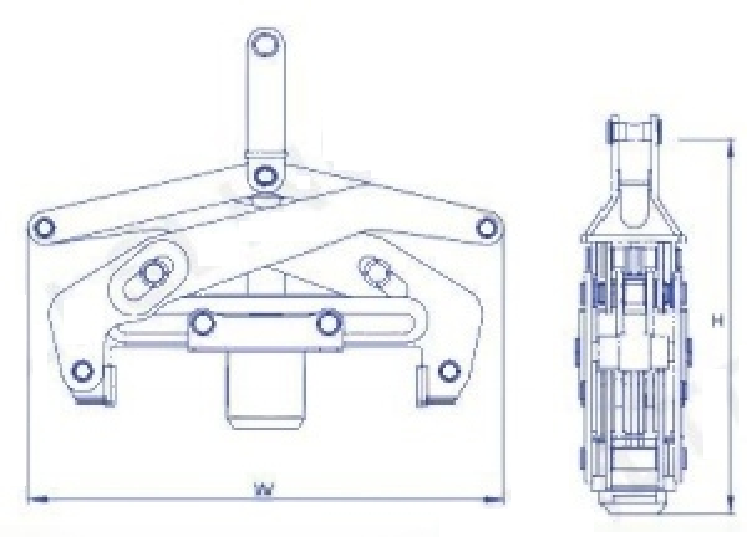

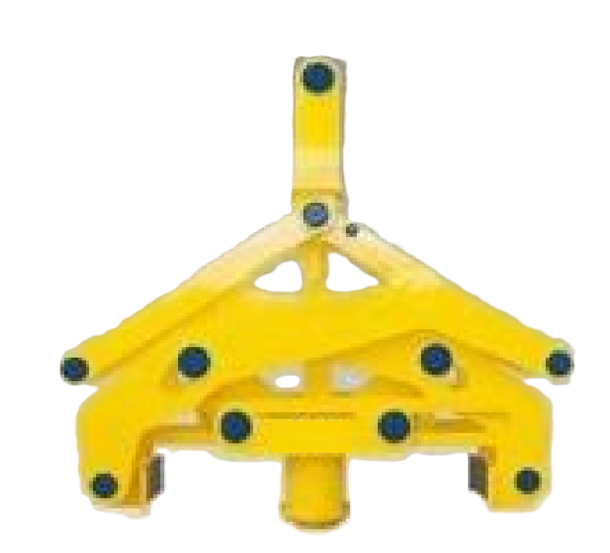

Double-sided Clamp Vertical Steel Coil Clamp

■ Used for lifting vertical steel coil.Lever type working principle makes it with simple structure, flexible movement, safe and reliable during lifting.

■ Locked by self weight of load,open and shut jaw automatically by the shutter.

■ Used for lifting annealing steel coil.It is relative horizontal during lifting.

WLL Inner Dia.of
the steel coil		 Application
Scope(W)		 Max.Dimension(mm)
t mm mm W H
15 φ508 φ960-1900 3800 5800
30 φ610 φ1250-2100 3800 5900
