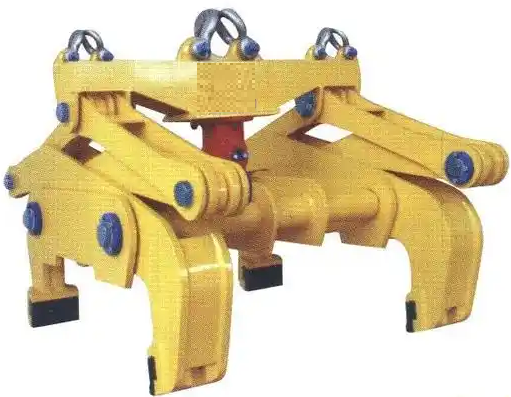

■ Lever type working principle makes it with simple structure,flexible movement ,safe and reliable during the lifting.Locked by the self weight of the load,open and shut the jaw automatically by the shutter.

■ Suitable for lifting 6-10mm thickness multi-layer plates.

There must have proper stow wood below the plates,and the plates should be stacked in rule.

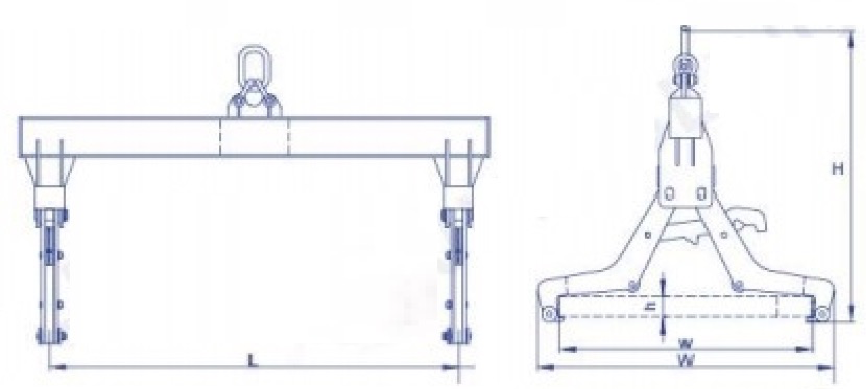

WLL	Application Scope(W)	Max.thickness of the plate	Span(L)	Max.Dimension(mm)
t	mm	H	(mm)	W	H
10	1800-2400	100	2500	3300	2800
10	2300-2900	100	2500	3900	2600
16	750-1430	100	2500	2000	2200
25	1800-2600	200	4000	3750	3300
25	1700-2800	200	6000	3900	3300
25	2000-3200	100	3000	4500	4800
32	1600-3250	300	5000	4200	3900
32	800-1630	250	3000	2900	3500
