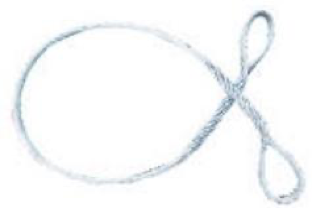

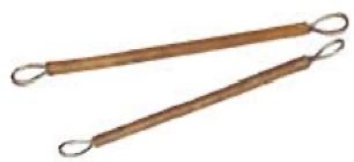

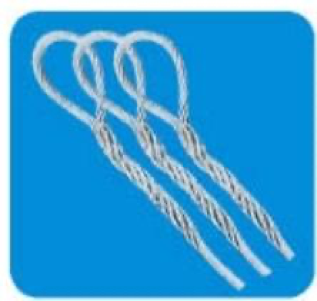

Interwoven Steel Wire Rope Rigging

Interwoven steel wire rope rigging is made of the highest quality steel wire ropes in the world, and is woven through professional steel wire rope processing equipment and advanced interweaving methods. It enables an easy connection with the lifted object, and is a safe and practical special hoisting tool for lifting, moving and handling heavy objects. It is characterized by high temperature resistance, wear resistance, convenient use and large bearing capacity, and is widely applied in industries such as machinery, metallurgy, shipping, petroleum, fishery, forestry, drilling, coal mines, and ports.
The diameter range of the interwoven steel wire rope: φ6mm - φ500mm; The breaking load of the rigging is 5 times the working load.
The working load varies depending on the specifications of the steel wire rope.
The working load can be calculated according to the steel wire rope required by the customer.

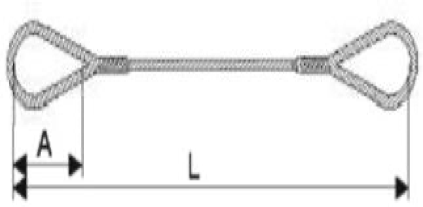

Diameter of the steel wire rope Rated load (KN) Approximate sleeve length A
(mm) Fiber core Hemp core (m)
6 2.7 2.9 180
7 3.6 3.9 190
8 4.7 5.1 210
9 6 6.5 230
10 7.4 8 230
11 8.9 9.7 250
12 11 11.5 260
13 12 14 260
14 14 16 280
16 19 20 320
18 24 26 360
20 30 32 400
22 36 39 440
24 42 46 480
26 50 54 520
28 58 63 560
30 66 72 600
32 76 82 640
34 85 92 680
36 96 104 720
38 106 115 760
40 118 128 800
42 130 141 840
44 143 155 880
46 156 169 920
48 170 183 960
50 185 200 1000
52 200 216 1040
54 215 233 1080
56 231 251 1120
58 248 269 1160
60 266 287 1200
64 257 304 1280
66 274 324 1320
68 291 344 1360
70 308 365 1400
72 326 386 1440
74 344 407 1480
76 363 430 1520
78 383 453 1560
80 402 476 1600
82 423 500 1640
84 444 525 1680
86 465  550 1720
88 487 576 1760
90 509 603 1800
92 532 630 1840
94 556 657 1880
96 579 686 1920
98 604 714 1960
100 629 744 2000
102 654 774 2040
104 680 805 2080
106 707 836 2120
108 733 868 2160
110 761 900 2200
112 789 933 2240
114 817 967 2280
116 846 1001 2320
118 876 1036 2460
120 905 1071 2460
Interwoven Steel Wire Rope Complete Set of Rigging

The specifications of the steel wire rope used for the working load in this table are: 6×37+FC-1670;
The breaking load of the rigging is 5 times the working load;
The working load varies depending on the specifications of the steel wire rope. The working load can be calculated according to the steel wire rope required by the customer;
In the case where the customer has no special requirements for two-leg rigging, the load within the range of 0°-90° is preferably selected. For three-leg and four-leg rigging, the load within the range of 0°-45° is preferably selected;
The matching lifting rings and hooks should be used with reference to the corresponding technical parameters.

Complete set
of wire rope
rigging
Nominal diameter Rated load Rated load(KN) Rated load(KN)
(mm) (KN) 0°-90° 90°-120° 0-45° 45°-80°
6 2.7 3.7 2.7 5.6 4
7 3.6 5 3.6 7.6 5.4
8 4.7 6.6 4.7 9.9 7.1
9 6 8.4 6 12.6 9
10 7.4 10.4 7.4 15 11
11 8.9 13 9 19 13
12 11 15 11 22 16
13 12 17 12 26 19
14 14 20 14 30 22
16 19 26 19 40 28
18 24 33 24 50 36
20 30 41 30 62 44
22 36 50 36 75 54
24 42 59 42 89 64
26 50 70 50 105 75
28 58 81 58 122 87
30 66 92 66 138 99
32 76 106 76 159 113
34 85 119 85 178 127
36 96 134 96 201 144
38 106 148 106 224 159
40 118 185 118 248 177
42 130 182 130 273 195
44 143 200 143 300 214
46 158 218 158 327 234
48 170 237 170 356 254
50 185 259 185 388 277
52 200 279 200 419 299
54 215 301 215 451 322
56 231 323 231 485 347
58 248 347 248 512 372
80 286 372 286 558 398
