Lashing Belt

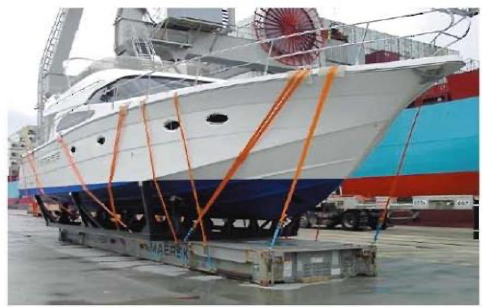

The lashing belt consists of a flat woven belt, tensioners, and metal end fittings, and can be equipped with end components according to practical needs. It is widely used for cargo securing during transportation and trailer self-recovery. The lashing belt has gained increasing popularity due to its compact size, lightweight design, simple operation, safety, reliability, and portability.
Note: Not suitable for lifting objects.
Materials: Polyester, Nylon, Dupont Fiber
Standards: European Standard EN12195-2, AS/NZS 4380
Length: Customizable
Temperature Range: -40℃ to 100℃
Safety Factor: 2:1
■ Features:
Time and labor saving, operable by a single person.
Safe and durable, made of special components and high-strength acid-resistant fiber materials.
Easy to operate and space-efficient.
Cargo-friendly design: Constructed with soft, flat fiber belts to distribute force evenly and protect goods from damage.
■ Precautions:
Use undamaged belts with clear capacity labels.
Do not exceed the load limit.
Avoid knotting the belt.
Keep the belt away from sharp edges or corners to prevent abrasion or cutting.

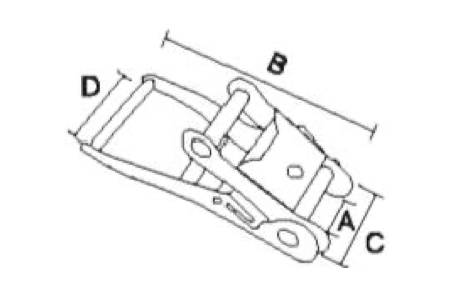

Tightening frame
Code number Breaking load(Kg) Fit width（mm） A（mm） B（mm） C（mm） D（mm） Weight(Kg)
C-015 1500 25 27 130 53 58 0.39
C-03 3000 38 38 154 70 72 0.6
C-05 5000 50 50 230 90 101 1.1
C-06 8000 75 75 300 148 154 3.1
Tensioner
Code number Tension capacity（Kg） Width of webbing （mm） Breaking load(Kg) Fixed length（mm）
RTD25-040 400 25 800 0.3 400 800 800
RTD25-050 500 25 1000 0.3 500 1000 1000
RTD35-075 750 35 1500 0.5 750 1500 1500
RTD35-100 1000 35 2000 0.5 1000 2000 2000
RTD35-150 1500 35 3000 0.5 1500 3000 3000
RTD50-200 2000 50 4000 0.5 2000 4000 4000
RTD50-250 2500 50 5000 0.5 2500 5000 5000
RTD75-350 3500 75 7000 0.7 3500 7000 7000
