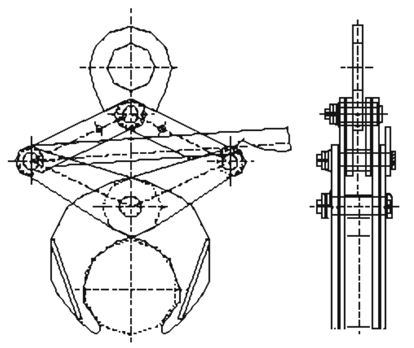

ROUND STEEL CLAMP（Type A）
The round steel clamp are made of high-quality low-carbon high alloy steel, with high strength, light weight, convenient and flexible lifting, and can lift round steel safely and reliably without external assistance.
The connection method between the pliers and the customer's overhead crane can be designed according to the actual situation.
Clamp the middle of the round steel,open and shut the jaw by manual control,iting the round steel horizontally Used for lifing the round steel horizontally.
| WLL（t） | Application scope(mm） | Opening Dimension（mm） |
|---|---|---|
| 1 | Φ50-100 | 105 |
| 1 | Φ100-160 | 170 |
| 2 | Φ80-130 | 145 |
| 2 | Φ100-200 | 210 |
| 3 | Φ120-220 | 240 |
| 3 | Φ180-250 | 270 |
| 6 | Φ200-320 | 340 |
| 5 | Φ250-400 | 440 |
| 6 | Φ300-500 | 630 |
| 10 | Φ710-730 | 760 |
| 15 | Φ550-700 | 750 |
| 26 | Φ1200-1800 | 1880 |

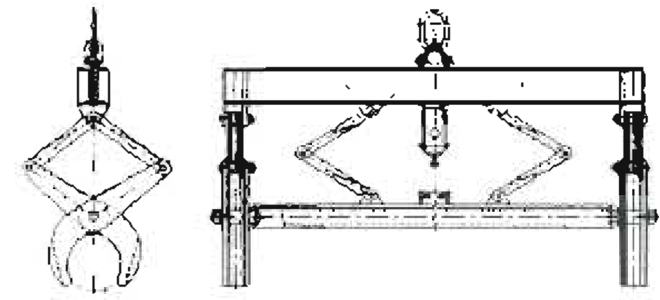

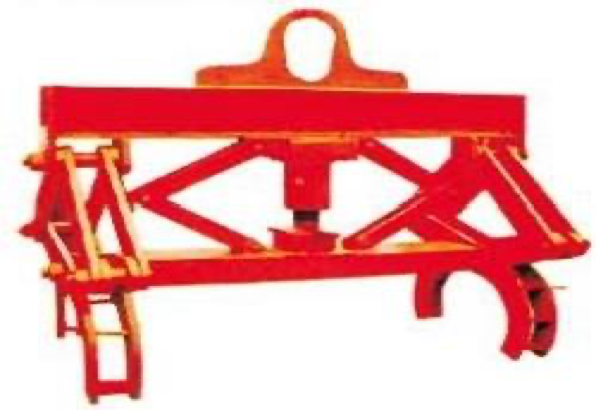

ROUND STEEL CLAMP（Type B）
| WLL（t） | Application scope(mm） | Length（mm） | Height（mm） |
|---|---|---|---|
| 2 | φ160-300 | 2000 | 1660 |
| 3 | φ200-350 | 2000 | 2100 |
| 5 | φ250-420 | 2000 | 2460 |
| 10 | φ320-450 | 2500 | 2580 |
| 15 | φ450-700 | 8000 | 2680 |
| 20 | φ380-550 | 3000 | 3050 |
